Amata Industrial City, Long Binh, Bien Hoa , Dong Nai, Vietnam
8200m2
30/07/2020
17/08/2020
Purpose of Simulation :
Check the ventilation system to find out:

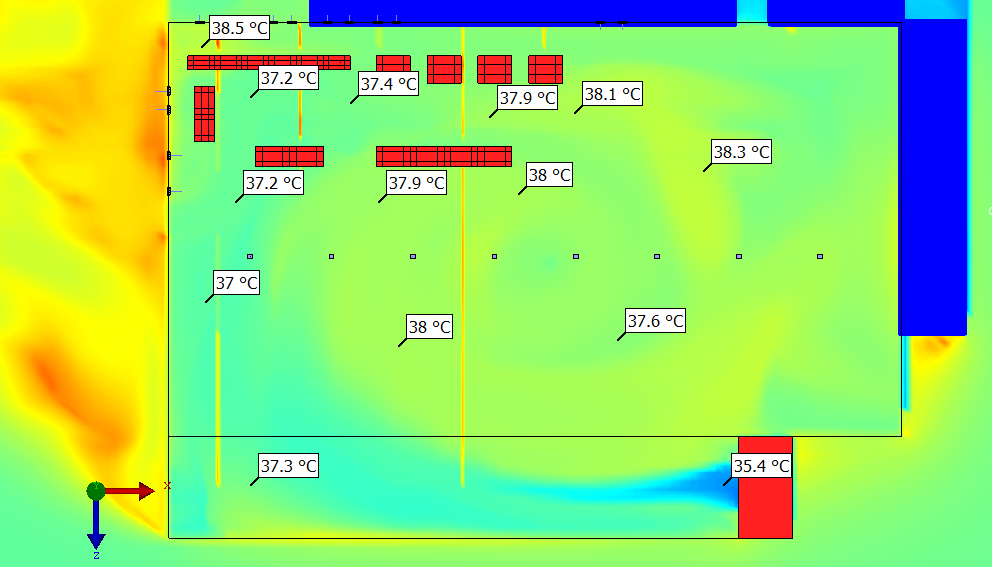

- The reason why is the welding area hot and suffocating ?
- The reason why is the exhaust pressure so weak ?
Result :

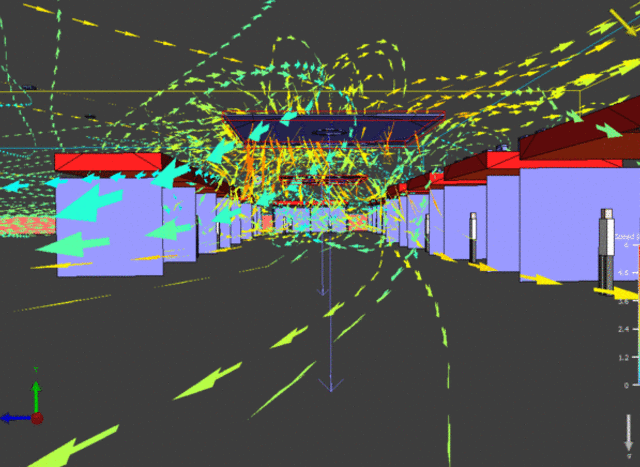

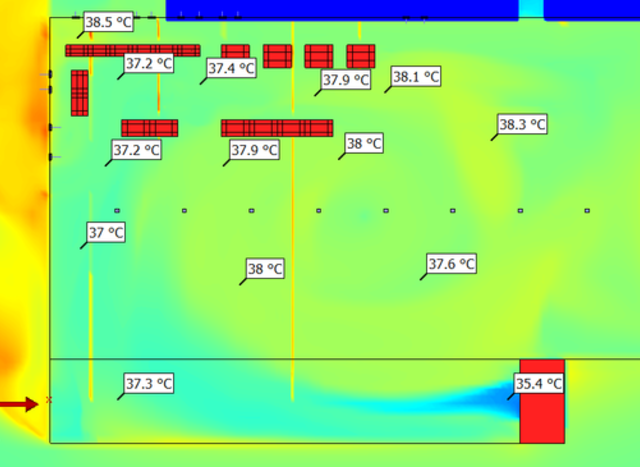

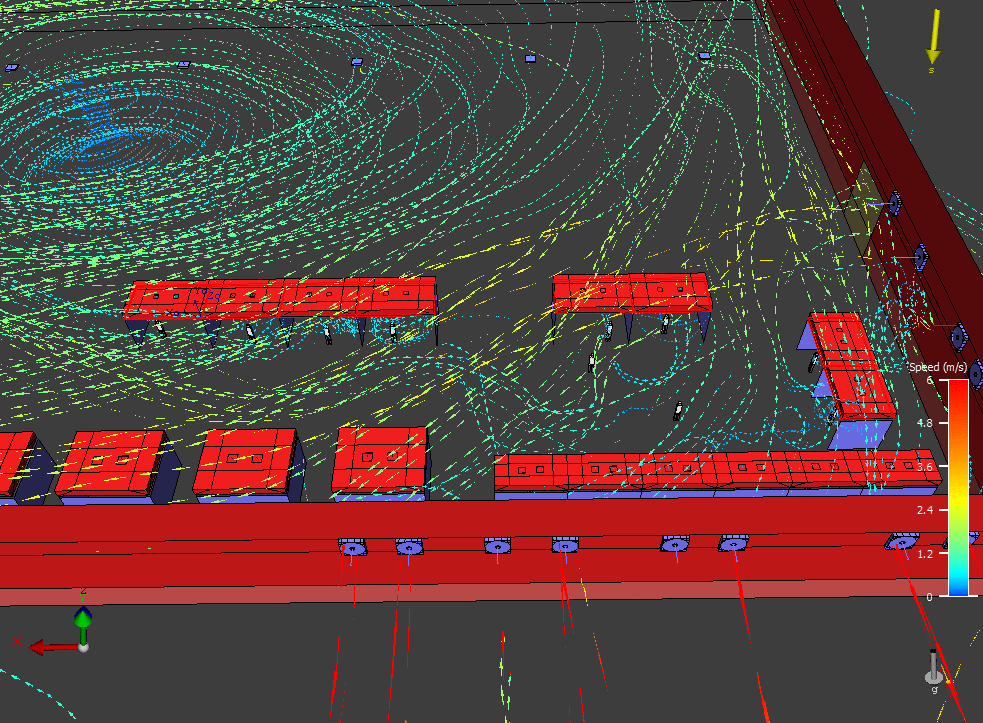

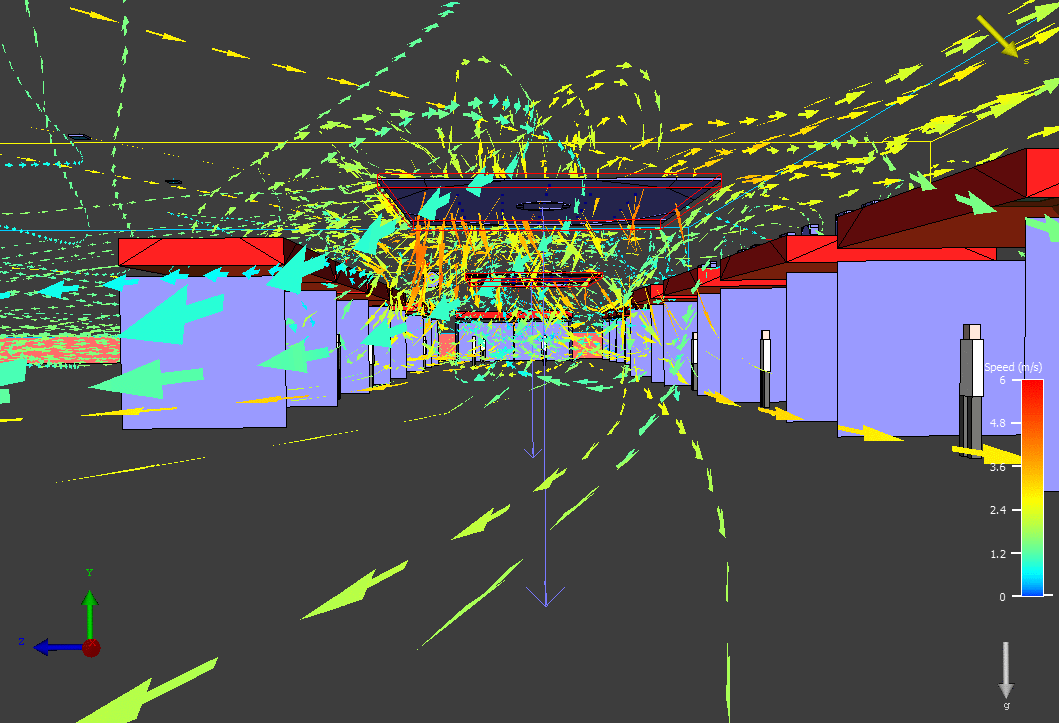

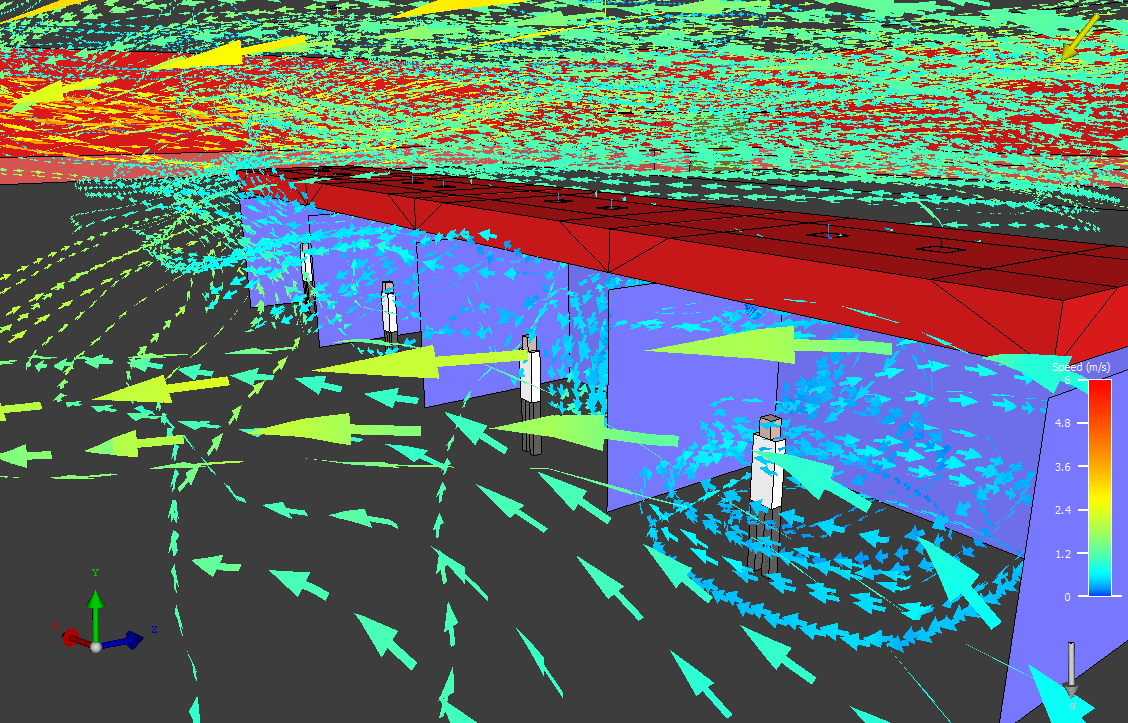

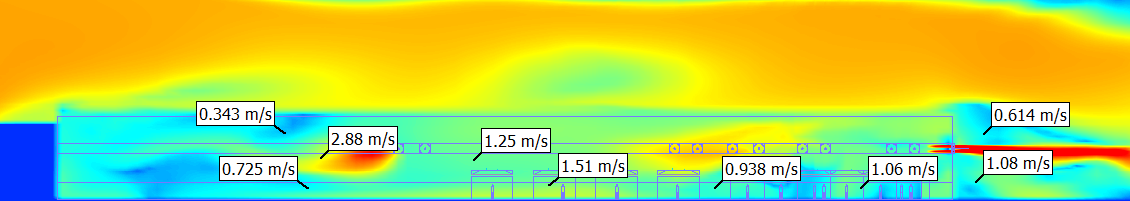

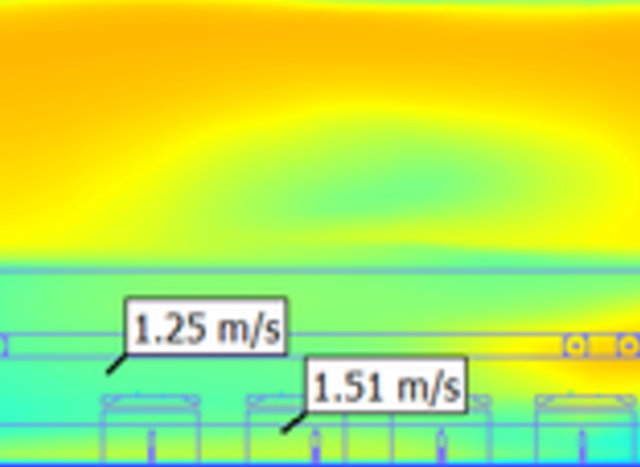

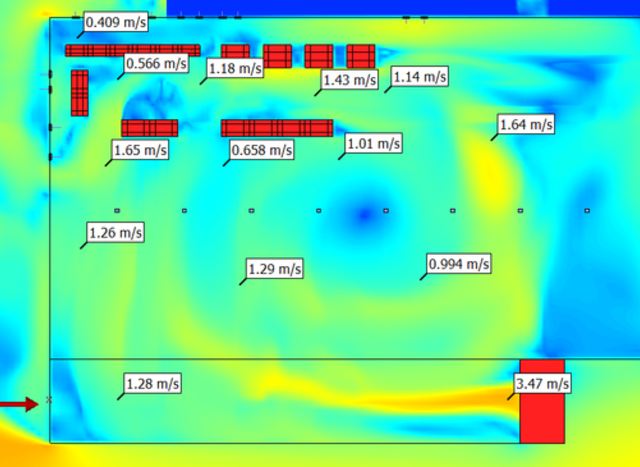

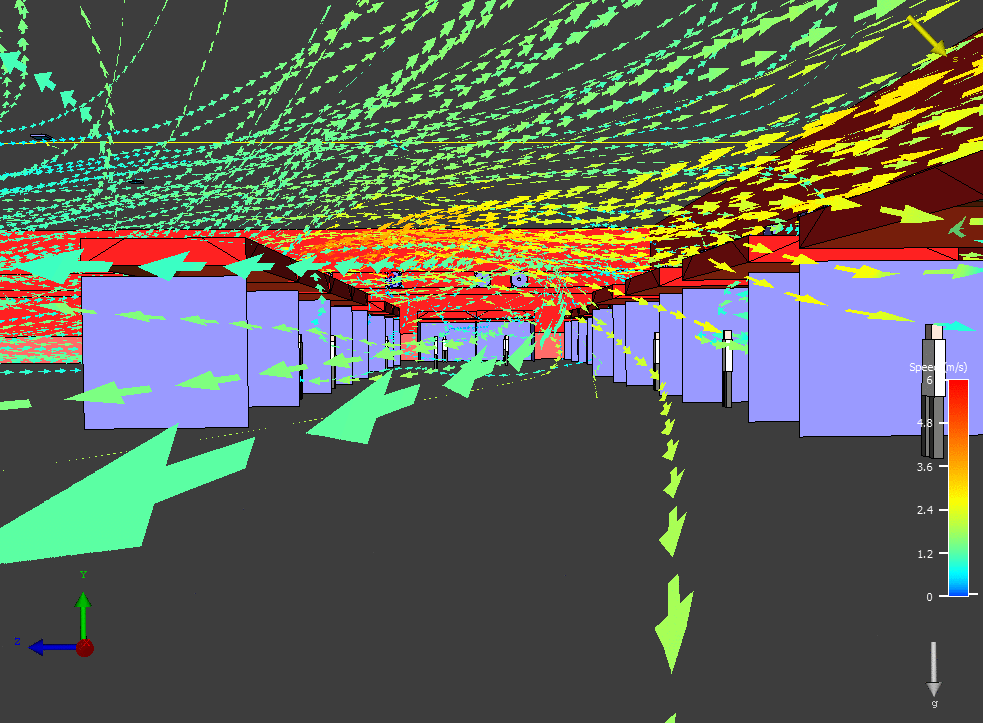

- Air flow are swirling inside the factory that make the heat accumulated and also affect the ventialtion system.

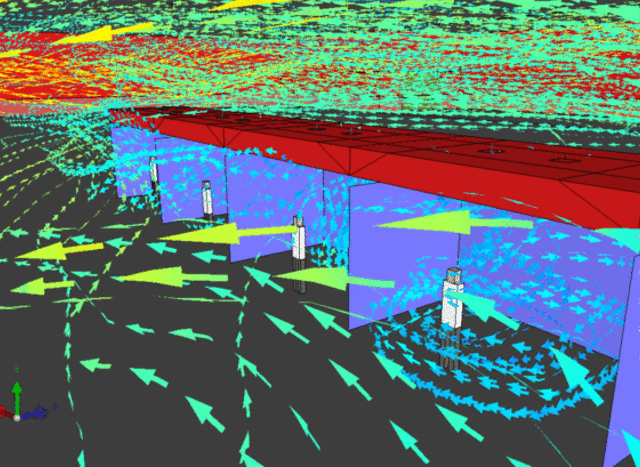

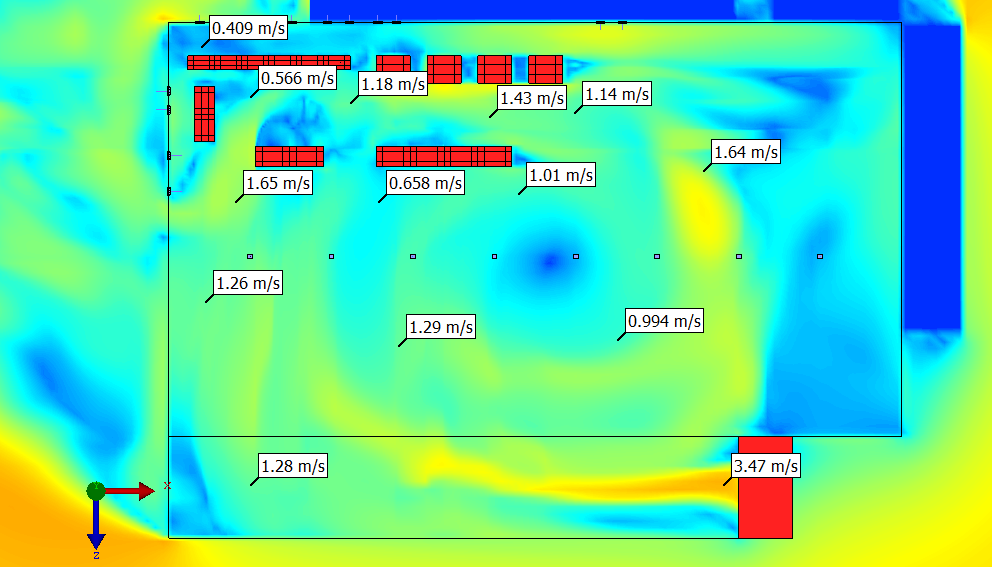

- The air vortex take the fresh air glide over the working area; only a very small amount of fresh air reaches the working area.

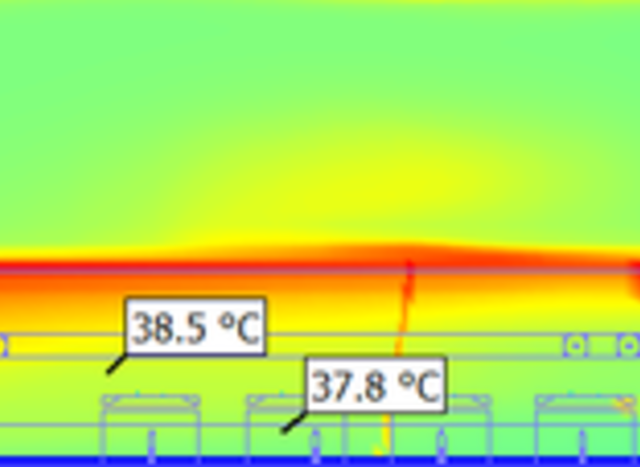

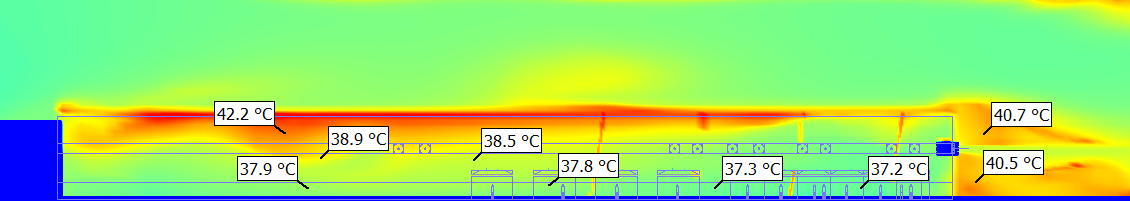

- The difference between the exhaust fan and the supply fan is too large. The factory has a large roof => the heat on roof being taken back before it can flow away.
